JA Solar 595W Solar Panel 144 Cell Bifacial JA-JAM72-D40-595MB Assembled in the USA

JA Solar JAM72D40-595/MB — 595W N-Type Bifacial Double Glass Solar Panel

The JA-JAM72-D40-595MB is a high-performance bifacial module from JA Solar, designed to bring durability and performance to the next level. Featuring 144 half-cut N-Type cells and a double-glass architecture, this module is built for those who require high energy density and long-term reliability. Emston Tech Inc provides this model as an ideal solution for residential, commercial, and utility-scale projects where maximizing yield is essential.

N-Type Bifacial Technology for Enhanced Efficiency
With a high base efficiency of 23.0%, this module utilizes bifacial technology to absorb sunlight from both the front and back sides simultaneously. Depending on the installation environment and surface albedo, this can result in up to 30% more energy production compared to conventional monofacial panels. The N-Type cell technology further enhances this performance with superior PID resistance and optimized low-light behavior.

Superior Heat-Resistant Performance
The JA-JAM72-D40-595MB is engineered to maintain high productivity even in hot climates. It features one of the lowest temperature coefficients in the industry, losing just -0.29% of efficiency for every 1.8°F (1°C) over the standard 77°F (25°C). This ensures that your investment at Emston Tech Inc continues to deliver strong results during peak summer heat.

Low Degradation and Industry-Leading Longevity
JA Solar’s stringent production standards ensure a high degree of automation and quality control. This module is designed for increased longevity with an impressive degradation profile:

• First Year: Power output loss is limited to no more than 1%.
• Years 2–30: Average yearly power drop is no more than 0.4%.
• 30-Year Guarantee: The module retains more than 87.40% of its initial output after three decades of service.

Built for Extreme Environmental Conditions
The JA-JAM72-D40-595MB is certified to withstand the most challenging environments, including resistance to PID, salt, acid, and ammonia. Its robust 1.38" thick anodized aluminum alloy frame and protective glass lamination allow it to bear significant mechanical loads:

• Front Load (Snow): Up to 5400 Pa
• Back Load (Wind): Up to 2400 Pa

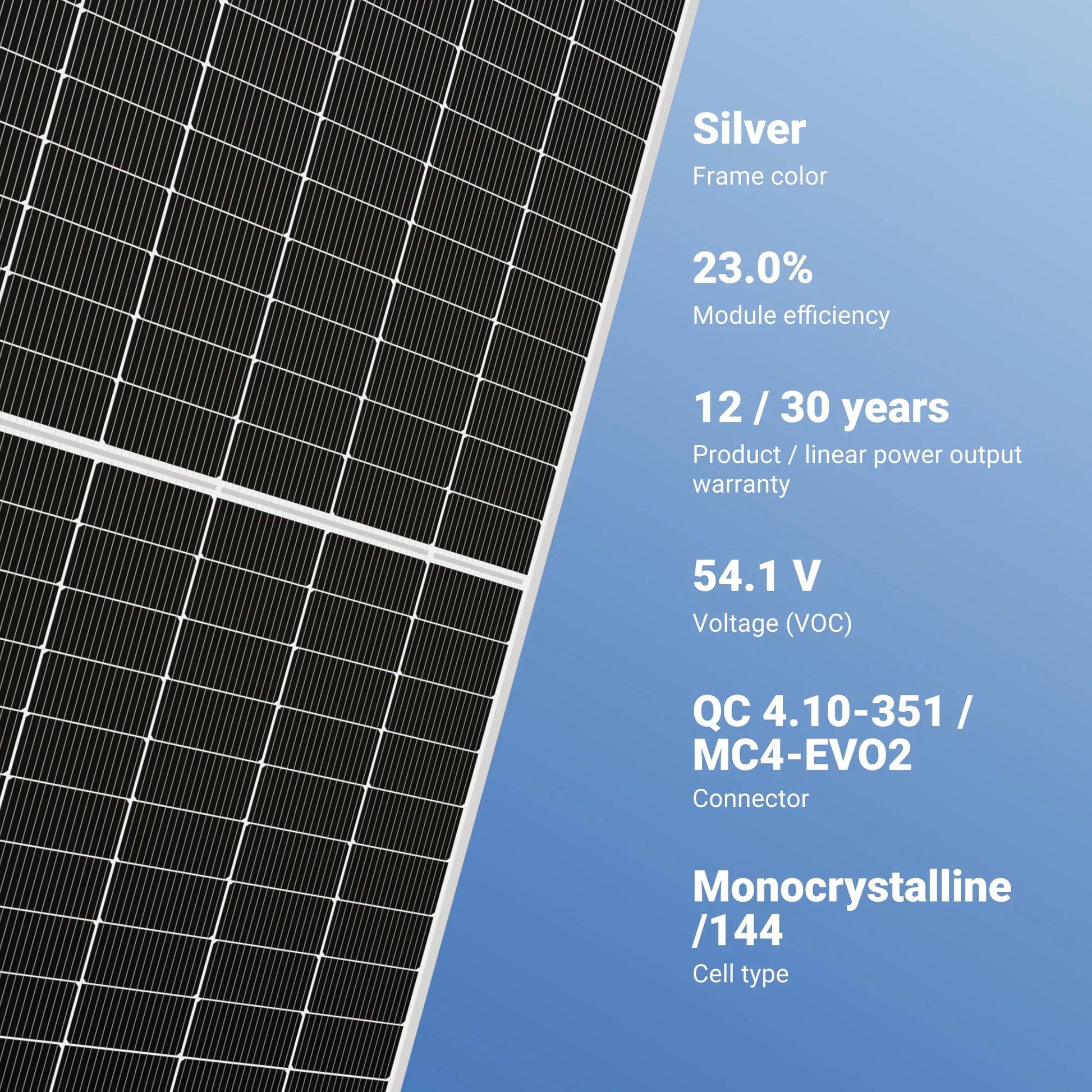

Technical Specifications:

• Power Output: 595 W
• Module Efficiency: 23.0%
• Cell Type: 144 Half-cut N-Type cells
• Maximum System Voltage: 1500 V DC
• Connectors: QC 4.10-351 / MC4-EVO2

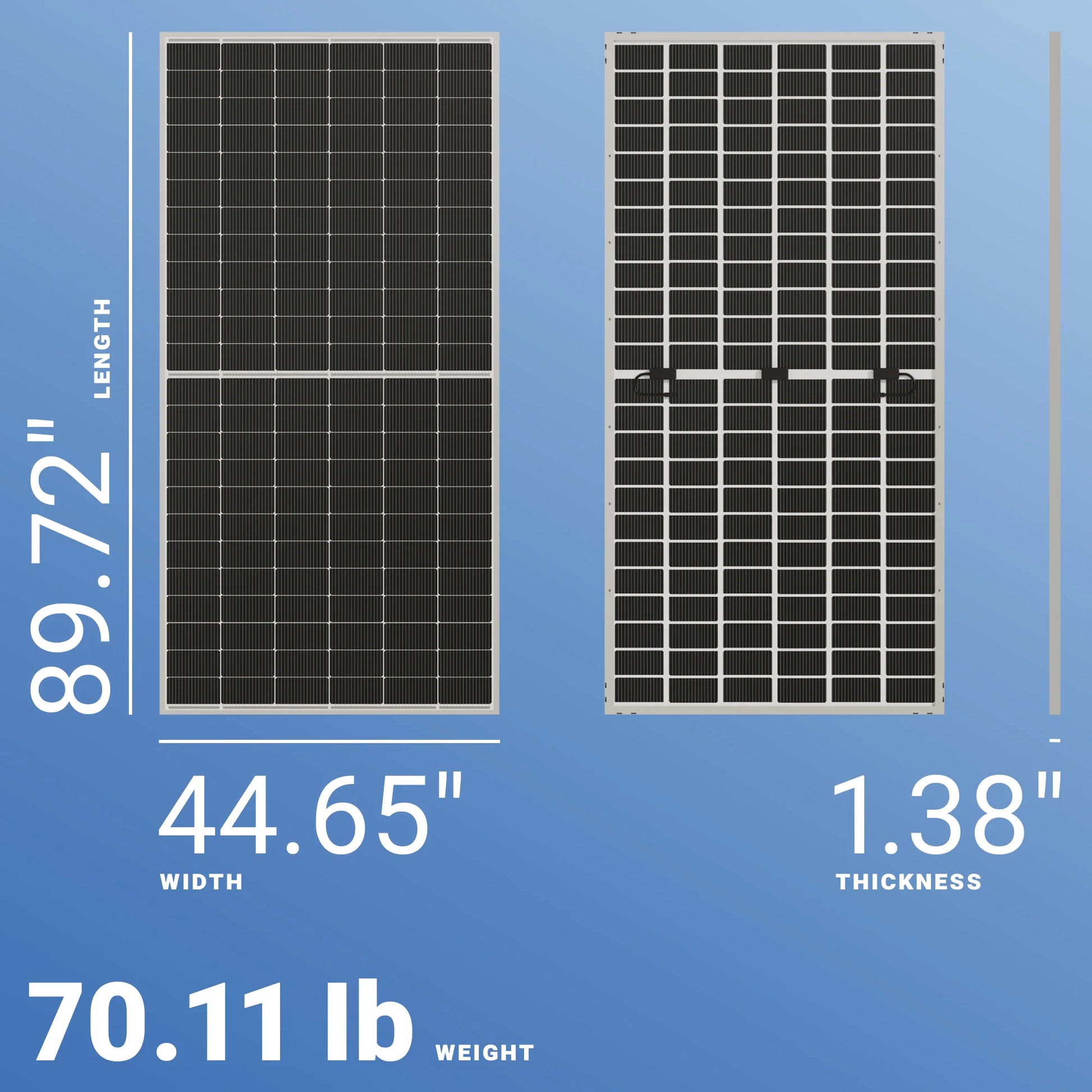

• Dimensions: 89.72" x 44.65" x 1.38"
• Weight: 70.11 lb

Warranty
This module is backed by a 12-year product warranty and a 30-year linear power output warranty. Trust Emston Tech Inc to provide the advanced solar technology needed to power your future with maximum efficiency.
